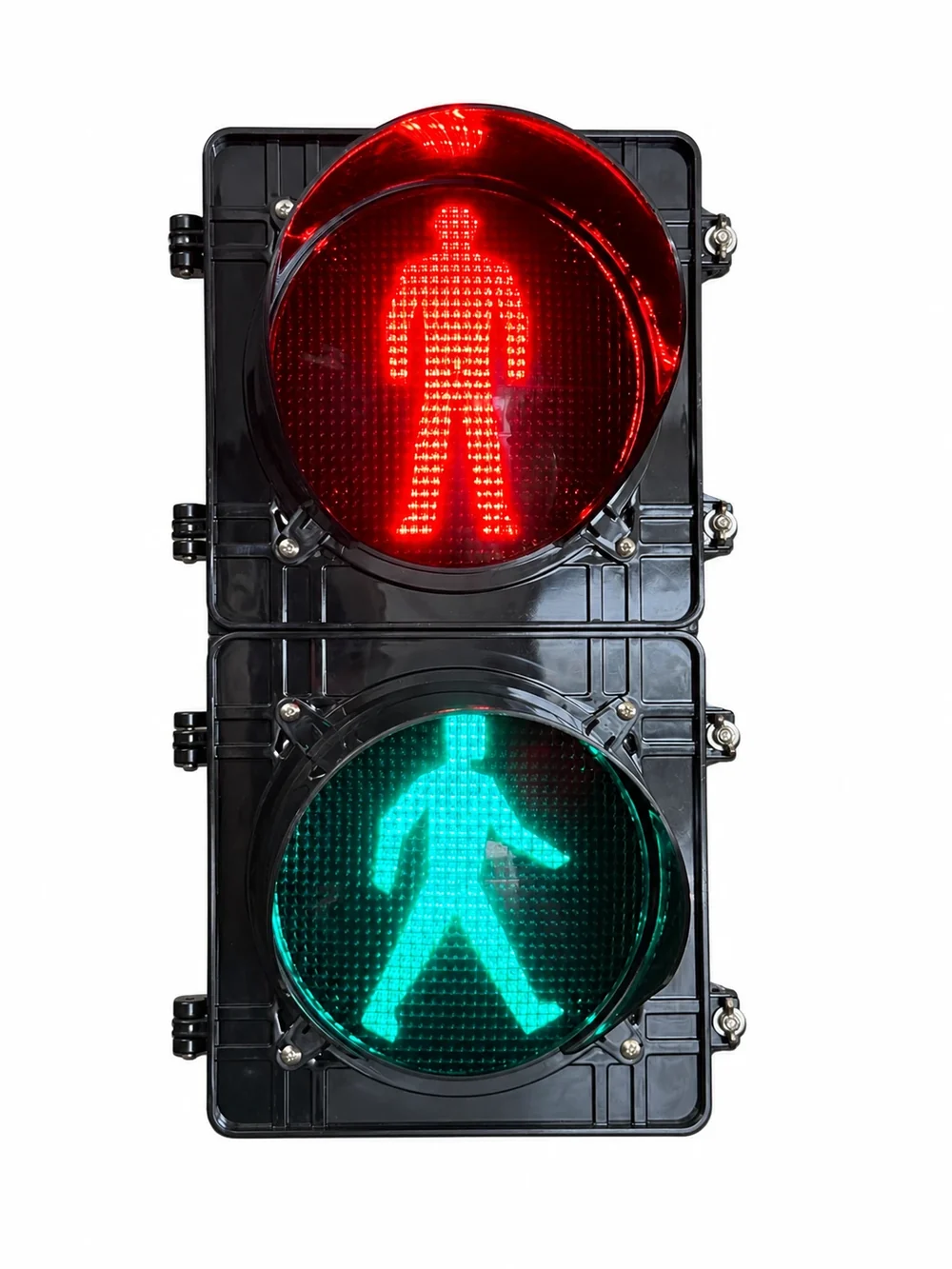

Front view
Angled view
200mm High-Power LED Pedestrian Signal
Two-aspect 200mm high-power LED pedestrian signal with red standing and green walking figures. Multiple supply-voltage versions are available; specify the required electrical version when ordering.
- Nominal signal size:
- 200mm
- Light source:
- High-power LED
- Signal arrangement:
- Two aspects: red standing / green walking
- Supply voltage options:
- AC 110V or AC 220V; separate selectable versions
Product Details
Basic Information
| Nominal signal face diameter | 200mm |
|---|---|
| Light source | High-power LED |
| Indication type | Pedestrian symbols |
| Indications | Red standing person / green walking person |
| Number of aspects | 2 |
| Aspect arrangement | Vertical |
| Power consumption per aspect / colour | 7 W |
| Supply voltage options | 190–265 V AC; 12 V DC; 32–42 V AC; 24 V DC; 110 V AC |
| Ingress protection | IP65 |
| Operating temperature | −40°C to +60°C |
| Housing material | 100% polycarbonate (PC) |
| Housing colour | Black |
Electrical Versions
Select one supply-voltage version when ordering. These options describe separate electrical configurations, not one universal AC/DC input.
The 7 W value applies to one illuminated aspect (one colour), not the complete 2-aspect signal head. Confirm the required voltage, quantity, controller connections and mounting drawing with your equipment list.
Choose AC 110V or AC 220V when ordering. These are separate options, not a specified universal input range.
Send the required quantity, destination country, indication and mounting requirements for configuration review.
Product photographs with both indications illuminated for display only; not an operating signal phase.
Product Poster
Red and green indications shown together for product illustration.
