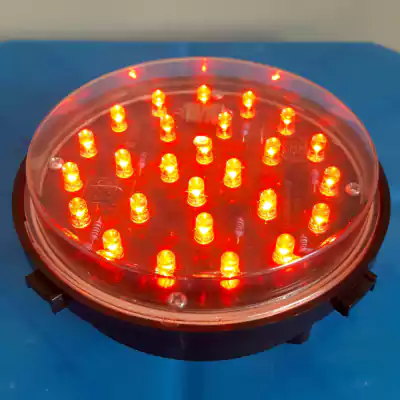

4 Inch(100MM) Traffic Light Red LED Module is the inner part of our 100MM traffic light, which also includes 100MM housing body as its outer part, these 2 parts together make one whole piece of our 100MM traffic light
  • Model Number:
  • LED Module NJGQ-DX-100-1YS1
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red/Yellow/Green Ball, Single Color
  • LED Number:
  • 26PCS/R+26PCS/Y+26PCS/G
  • Shape:
  • Round With Ball Design

Product Details

Bascinfo:

  • Product Size:
  • 120*120*70MM/100MM Diameter
  • Lenses:
  • Transparent & Flat
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp

Product Details:

1-Aspect Mini Size Housing Body: 120*70MM

Transparent Rotary Cover:Easy Installation And Possible Repair

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

4 Inch(100MM) Traffic Light Red LED Module 4 Inch(100MM) Traffic Light Red LED Module
4 Inch(100MM) Traffic Light Red LED Module
Length: 120MM Mounting And Fixing Ears: 4
Width/Thickness: 120MM Inner Sealing Ring: Yes
Height: 70MM Detachable visior: No

4 Inch(100MM) Traffic Light Red LED Module is the inner part of our 100MM traffic light, which also includes 100MM housing body as its outer part, these 2 parts together make one whole piece of our 100MM traffic light

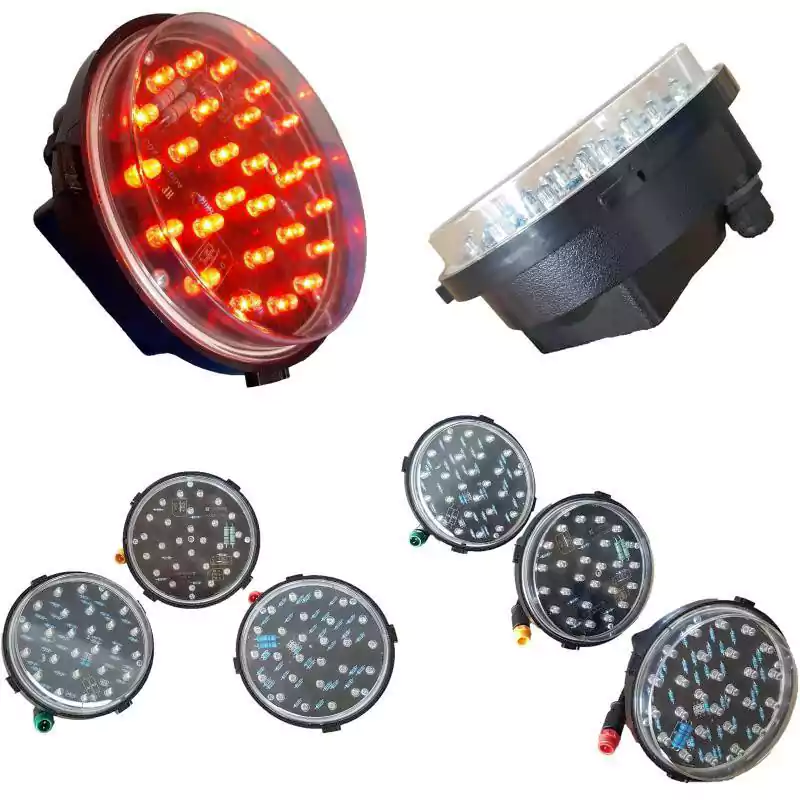

4 Inch(100MM) Traffic Light Red LED Module includes its all electrical parts, an inner housing body for holding all these electrical parts, an inner sealing ring for first-level water and dust protection, a transparent and flat lens, and an outer sealing ring for second-level waterproof and dustproof.

4 Inch(100MM) Traffic Light Red LED Module has 5MM diameter LEDs, Printed Circuit Board named as PCB, suitable resistors for adjusting the brightness, possible power transformer if it is direct current input supply.
