200MM(8 Inch) Led Traffic Lights with 4-Aspect Red Yellow Ball And GG Arrow 2-Way is one kind of our Vehicle Traffic Light series, which often includes ball/arrow vehicle traffic lights and its additional traffic lights countdown timer,reminding any driver when to go or stop for any crossing.
  • Model Number:
  • 8 Inch 2-Way Red Yellow Ball Led Traffic Lights
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • RY Balls+GG Arrows
  • LED Number:
  • 126PCS*2/B+57*2PCS/A
  • Shape:
  • Round With Balls And Arrows

Product Details

Bascinfo:

  • Product Size:
  • 270*110*1200(1100)MM/184+200MM φDiameter
  • Lenses:
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

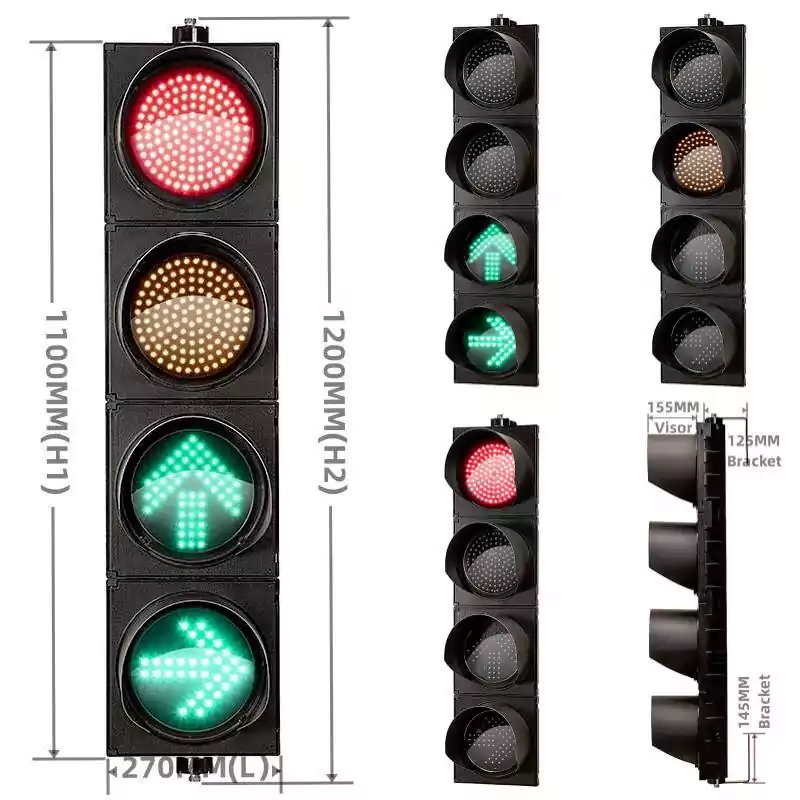

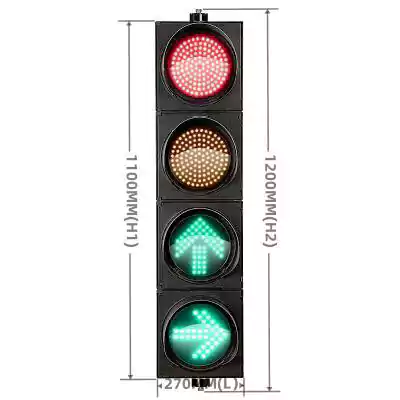

4-Aspect Detachable Traffic Light Body: 270*110*1200(1100)MM

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

200MM(8 Inch) Led Traffic Light with 4-Aspect Red Yellow Ball And GG Arrow 2-Way 200MM(8 Inch) Led Traffic Light with 4-Aspect Red Yellow Ball And GG Arrow 2-Way
200MM(8 Inch)  Led Traffic Light with 4-Aspect Red Yellow Ball And GG Arrow 2-Way ,4 aspect/section as 200MM*4/204
Length: 270MM Steel bracket: 125MM*145MM
Width/Thickness: 110MM Top bracket and bottom bracket as one set
Height: 1200MM/1100MM(No Bracket) Detachable visior: 155MM length

200MM(8 Inch) Led Traffic Lights with 4-Aspect Red Yellow Ball And GG Arrow 2-Way is one kind of our Vehicle Traffic Light series, which often includes ball/arrow vehicle traffic lights and its additional traffic lights countdown timer,reminding any driver when to go or stop for any crossing.

200MM(8 Inch) Led Traffic Lights with 4-Aspect Red Yellow Ball And GG Arrow 2-Way has 4 detachable traffic light bodies, and these 4 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

200MM(8 Inch) Led Traffic Lights with 4-Aspect Red Yellow Ball And GG Arrow 2-Way has 2 phases together in one whole body, including green ball time for one phase and green arrow time for another phase.
