2-Aspect Led Traffic Light With RYG Ball Traffic Light Semaphore Countdown Timer

2-Aspect Led Traffic Light With RYG Ball Traffic Light Semaphore Countdown Timer is one kind of our 100MM to 500MM traffic light semaphore system, which often has vehicle traffic light semaphore and countdown timer as a whole set, reminding any driver when to go or stop for any crossing.

Model Number:
2-Aspect Led Traffic Light 16 Inch(400MM)
Housing Body:
UV PC Plastic
LED Module:
UV PC Plastic & Electronics
LED Color:
RYG Ball+RYG Timer
LED Number:
144*3PCS/A+168*2+84PCS/T
Shape:
Round/Square With RYG Ball+Timer

Product Details

Bascinfo:

Product Size:
490*160*1030(950)MM+φ338/335MM Diameter
Lenses：
Transparent&Flat/Cobweb&Curved
Wavelength:
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage:
12-24VDC Or 110-220VAC
Light Source:
5MM Diameter LED
Communicate:
Self-Learn/RS485 Real-Time
Power Factor:
≥0.85 @ 25℃
Power Consumption:
＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

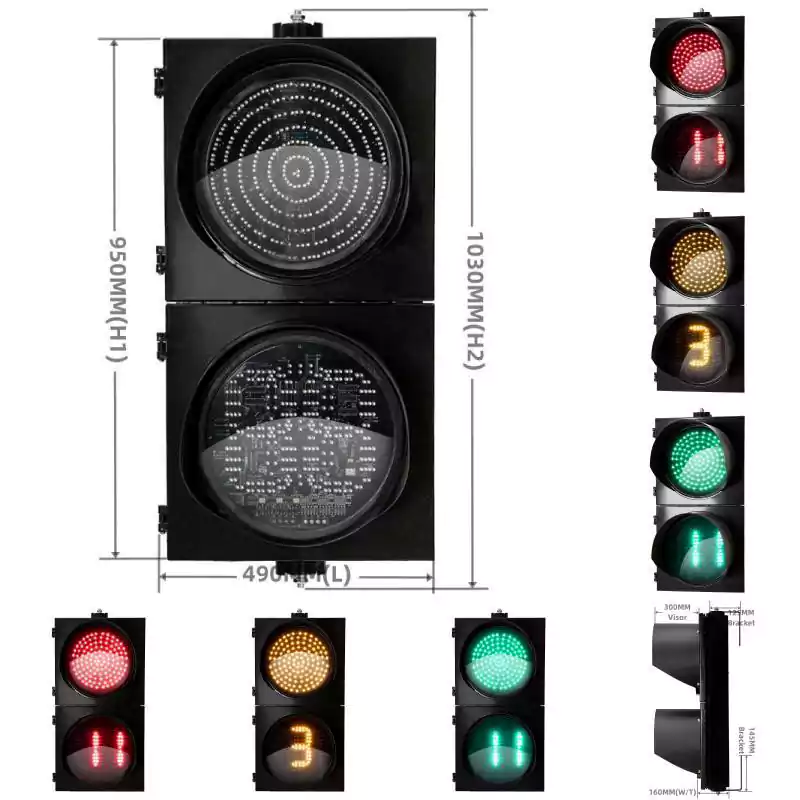

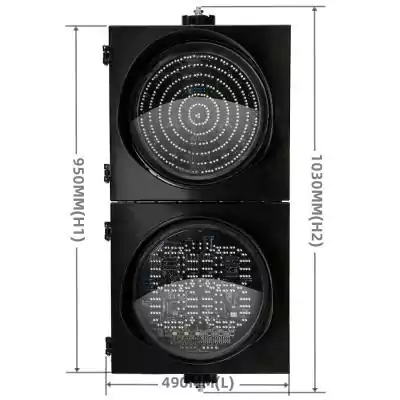

2-Aspect Attachable Traffic Light Body: 490*160*1030(950)MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC


2 Aspect/Section Led Traffic Light With RYG Ball Traffic Light Semaphore Countdown Timer, as 16 Inch(400MM)*2/402
Length: 490MM	Steel bracket: 125MM*145MM
Width/Thickness: 160MM	Top bracket and bottom bracket as one set
Height: 1030/950MM(No Bracket)	Detachable visior: 300MM length

2-Aspect Led Traffic Light With RYG Ball Traffic Light Semaphore Countdown Timer has 2 aspects in total, and each aspect has 3-In-1 color design, which means three colors will work in turn according to traffic light rules.

2-Aspect Led Traffic Light With RYG Ball Traffic Light Semaphore Countdown Timer has 3 statuses, including red traffic light semaphore time for stop, yellow traffic light semaphore time for caution and green traffic light semaphore for go.

2-Aspect Led Traffic Light With RYG Ball Traffic Light Semaphore Countdown Timer has its own traffic light countdown timer, it will will more clearly remind any driver to stop and go at a road by its remaining red, yellow and green time.

Red Yellow Green Traffic Light with Countdown Timer: Product Guide for Project Buyers

This red, yellow and green signal with a countdown display is designed for standard vehicle approaches that need both conventional phase indication and an additional time reference. It helps project teams combine a familiar signal format with an organised junction-control layout.

What to Define Before Configuration

Confirm the phase sequence, lens arrangement and countdown requirement in the approved signal plan.
Match the countdown function to the actual controller programme and permitted local operating practice.
Review the signal-head location, approach speed and sight line before selecting brackets or poles.
Include spare parts, cable tails and commissioning requirements in the procurement schedule.

Typical Project Applications

This solution is commonly considered for:

Urban intersections and side-road approaches
Campus, industrial-park and private-road junctions
Parking and access-control projects with timed movements

Configuration and Integration Review

To avoid mismatched equipment at installation, confirm the following items with the project drawing and electrical schedule:

Aspect order and countdown phase mapping
Controller outputs, voltage and electrical termination
Signal-head mounting and bracket configuration
Project inspection, packing and delivery requirements

The final electrical, optical, mechanical and environmental requirements should be confirmed against the approved project specification before production. This helps ensure that the supplied equipment, mounting parts and control interfaces align with the intended application.

Installation, Commissioning and Maintenance

Installation should be completed by qualified personnel following the site safety plan and local regulations. Before commissioning, check mounting security, cable protection, power isolation, controller logic and visibility from the intended approach. Record the final configuration and keep the wiring and inspection information available for future maintenance.

Questions Buyers Commonly Ask

Why must the countdown be matched to the controller?

The timer needs an agreed phase relationship so it provides useful information rather than conflicting with the active signal.

Can the same project use signals without countdowns?

Yes. The signal schedule can combine equipment types where this is required by the junction design.

What should be sent with an inquiry?

A junction sketch, quantity by approach, voltage, mounting method and controller details will support an accurate proposal.

Request a Project-Based Recommendation

For an accurate quotation, send the application description, site drawing, required quantity, preferred delivery location and any controller or mounting requirements. Our team can review the configuration before you place the order.
