200MM Sequential Flashing Warning Light System With 3 Optional Lenses

Planning a 200mm sequential warning light system

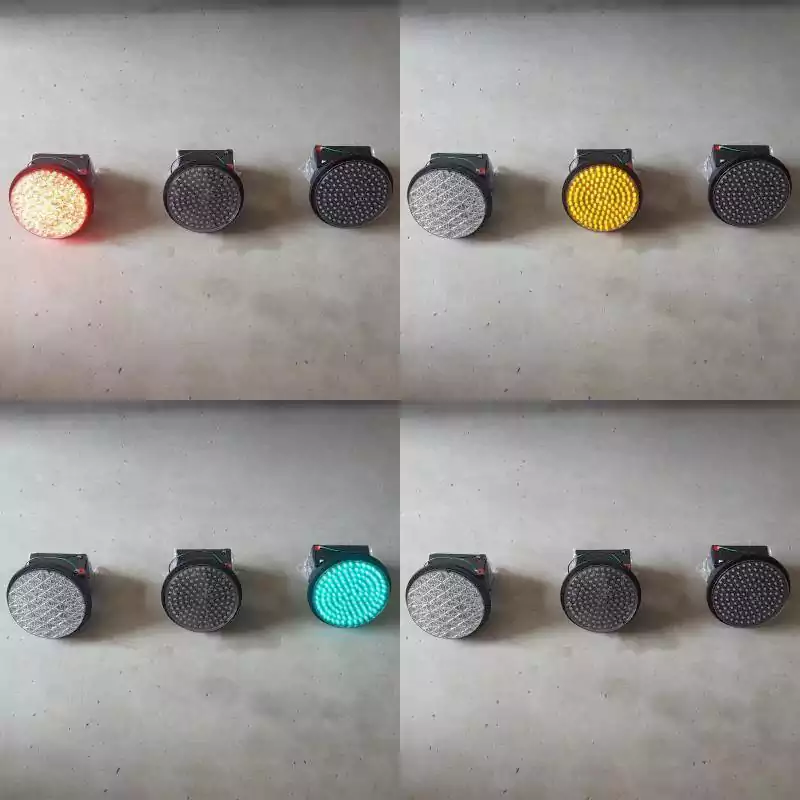

This compact solar warning light is designed for installations that need a visible one-by-one flashing sequence without a wired communication line between every lamp. Each unit uses a 200mm LED indication, an 8Wp polycrystalline solar panel and wireless radio communication. Red, yellow or green single-color lenses can be selected according to the warning plan. After a full charge, the stated operating design supports up to seven rainy days, which makes battery and solar exposure important parts of the site assessment rather than details to decide after installation.

Typical deployment considerations

Sequential lamps can guide drivers through lane changes, work zones, curves, temporary closures or other locations where a moving visual pattern is easier to follow than several lamps flashing together. The installation should begin with a site drawing that defines lamp order, spacing and the direction of the sequence. Solar panels need an unobstructed orientation, and radio communication should be checked across the complete run. This page describes the individual warning-light configuration; the final quantity and spacing should be selected for the actual road geometry and operating speed.

What to confirm before ordering

• Required lens color, number of lamps and the start-to-end flashing direction.
• Lamp spacing, mounting method and solar-panel orientation at each position.
• Expected local weather conditions and any shading that may reduce charging.
• Wireless grouping, replacement-unit procedure and the required warning schedule.
