  • Model Number:
  • Automated Flagger NJGQ-JD-300-2YS2-YDDZ24
  • Body Material:
  • Die Cast Iron+PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics, 300MM Traffic Light
  • LED Color:
  • Green Yellow Ball
  • LED Number:
  • 120PCS/R+120PCS/Y
  • Power Supply:
  • 24V 50Ah Battery(Parallel Connection)

Product Details

Bascinfo:

  • Product Size:
  • 1560*1660MM Body/φ254MM Diameter PCB
  • Solar Panel:
  • 100Wp Solar Panel
  • Running Time:
  • 5 Rainy Days(120 Hours) Without Charging
  • Communicate:
  • Wireless 433Hz Within 1000M
  • Light Source:
  • 5MM Diameter LED
  • Working Mode:
  • Red Light+Arm Down→Yellow Flash+Arm Up
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp
  • Certificate:
  • CE&IP65
  • Warranty:
  • 5 Years

Product Details:

Auto Barrier Gate: Up And Down By Small Remoter

Trailer With 4 Wheels:Easy Movable And Mobile

2 Traffic Light Heads: One Red Light For Stop and Another Yellow Light For Go

Inbuilt Slolar Traffic Light Controller: Stand-Alone Or Work With Another By Wireless

300MM*2 Traffic Light & 3000M Gate Arm As Automated Flagger 300MM*2 Traffic Light & 3000M Gate Arm As Automated Flagger
300MM*1 4-Face Temporary Traffic Light With Trailer, 4 Faces As A Pair
Length:1560MM Inbuilt Solar Panel And Battery As Power Source
Width: 1660MM Inbuilt Solar Traffic Light Controller As Control Center
Height: 3000MM Gate Arm 2 Sets Work As A Pair Or Each Works Alone

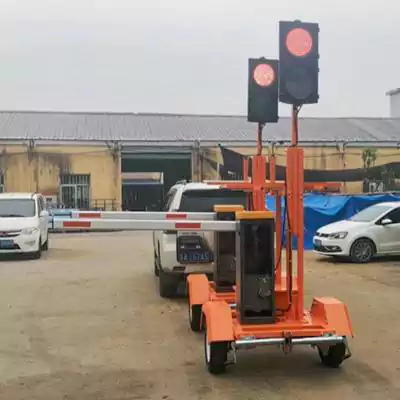

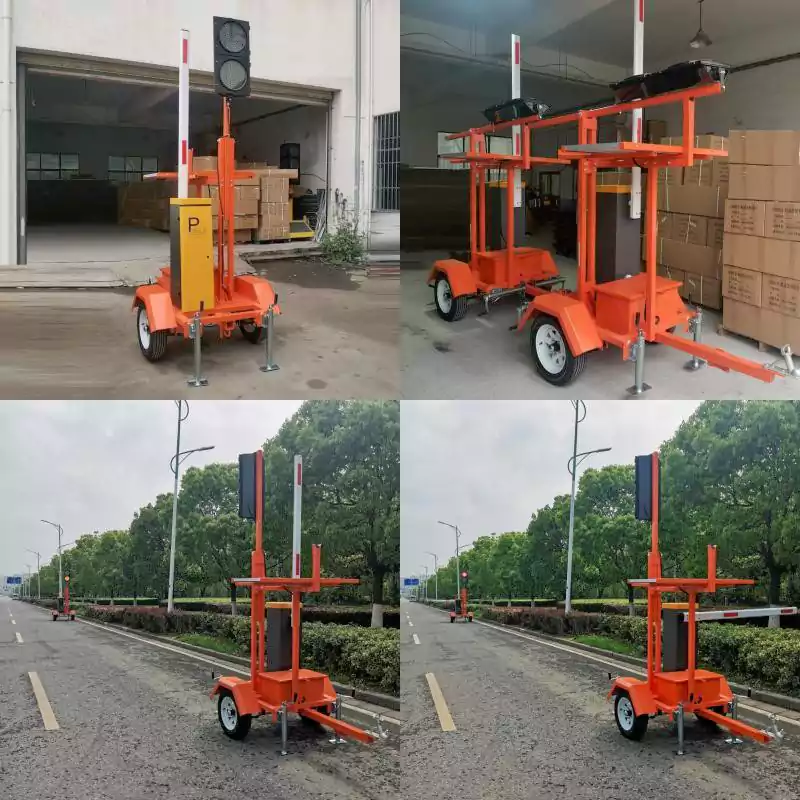

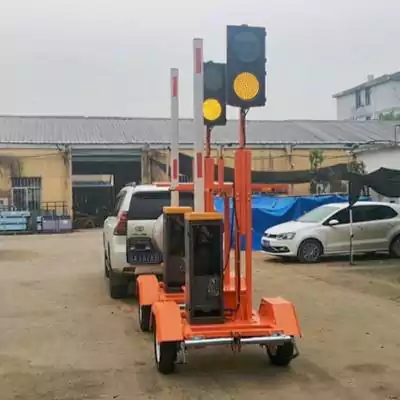

300MM Traffic Light Trailer & 3000M Barrier Gate As Automated Flagger is an extension to our traffic light trailer series, it has its mobile traffic light trailer and auto barrier gate for temporary traffic control at certain area.

300MM Traffic Light Trailer & 3000M Barrier Gate As Automated Flagger has 300MM*2 traffic light, including red traffic light for stop and yellow flashing traffic light for go.

300MM Traffic Light Trailer & 3000M Barrier Gate As Automated Flagger also its auto barrier gate, so its 3000MM long arm can work together with traffic light. When the gate arm is down, its traffic light is red.

300MM Traffic Light Trailer & 3000M Barrier Gate As Automated Flagger additionally has a 4-wheel trailer as its base part, such 4 wheels makes it movable and moblie, so you can easily take and set up at anywhere for temporary traffic control by your own car.

As a whole set of automated flagger system, it can work alone by its inbuilt solar traffic light controller, or work with another one within 1000M by wireless communication as a pair, working in turn or synchronization.
