  • Model Number:
  • Traffic Light Timer NJGQ-DJS-88-1FT3-800-600-540
  • Housing Body:
  • Die Casting Iron+PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • 2-Digit 3-Color RYG Timer
  • LED Number:
  • 14 LED Blocks
  • Shape:
  • Square With RYG Timer

Product Details

Bascinfo:

  • Product Size:
  • 800*600*140(20+100+20)MM/Font Height 540MM
  • Lenses:
  • Transparent&Flat
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp

Product Details:

Outer Silicone Gel Sealing: IP65 For Max Waterproof And Dustproof

1-Aspect Double-Door Traffic Light Body: 1000*600*140MM/Font Height 540MM

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

800*600MM 2-Digit Steel Traffic Light Timer 800*600MM 2-Digit Steel Traffic Light Timer
800*600MM 2-Digit Steel Traffic Light Timer, Single Face With Single Door

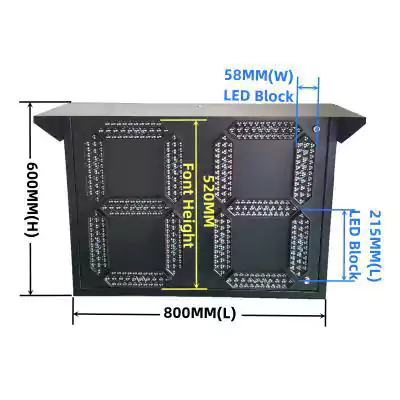

Length: 800MM Steel bracket: 125MM*145MM
Width/Thickness: 140MM Top bracket and bottom bracket as one set

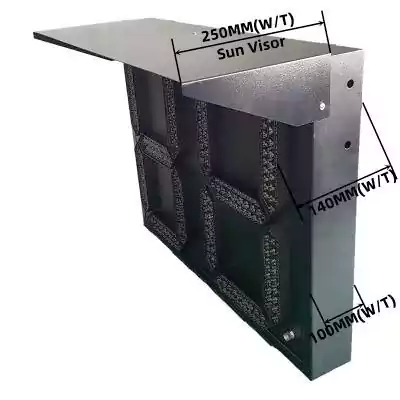

Height: 600MM Detachable visior: 250MM length

800*600MM 2-Digit Steel Traffic Light Timer is one kind of 100MM to 500MM diameter traffic signal light countdown timer, which displays the remaining seconds of red/yellow/green light as additional visual aid tool for traffic.

800*600MM 2-Digit Steel Traffic Light Timer has outer silicone gel sealing for its LED module,so it can meet IP65 grade for Max waterproof and dustproof

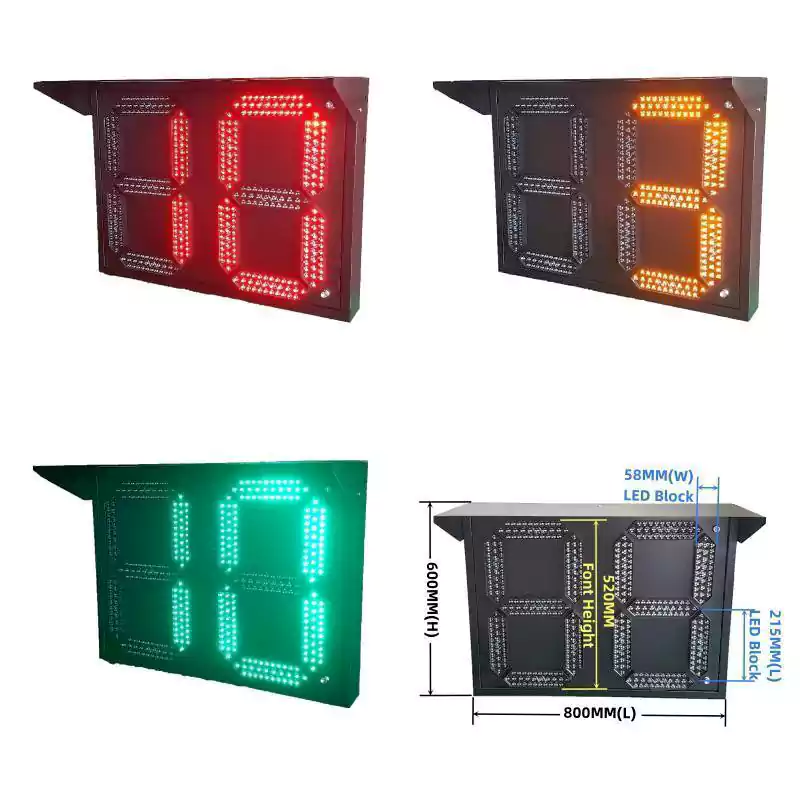

800*600MM 2-Digit Steel Traffic Light Timer has only 1 aspect, but it has 3-in-1 design, which means it has red timer, yellow timer and green timer in total.

800*600MM 2-Digit Steel Traffic Light Timer has 3 statuses, including red countdown timer for stop, yellow countdown timer for caution, and green countdown timer for go.
