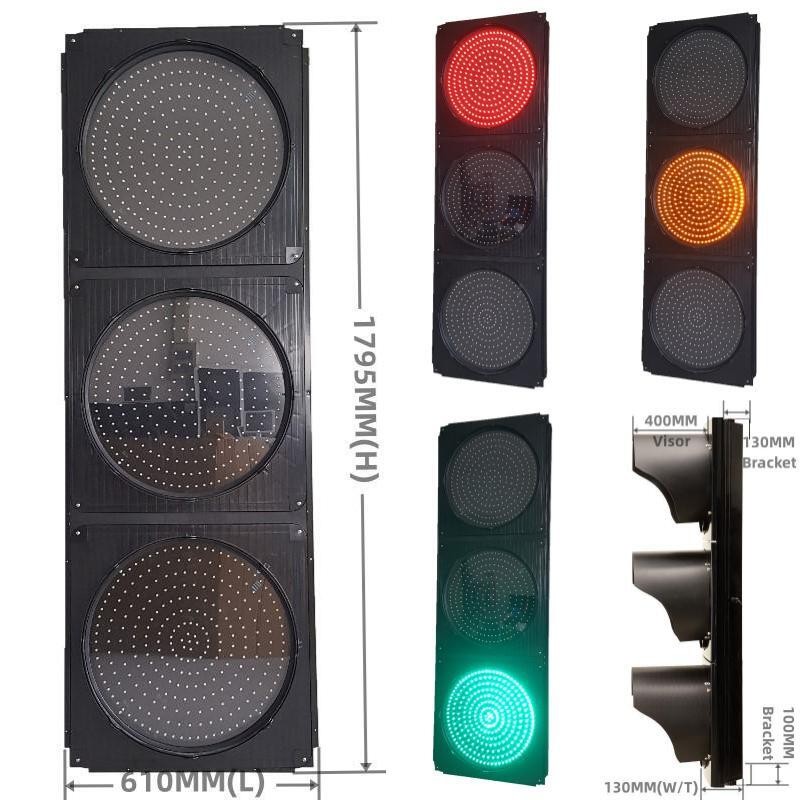

20Inch(500MM) 3-Aspect RYG Ball Traffic Light Factory

Model Number:
Traffic Light Factory NJGQ-JD-500-3YS/FS3
Housing Body:
UV PC(Polycarbonate) Plastic
LED Module:
UV PC Plastic & Electronics
LED Color:
Red+Yellow+Green Balls
LED Number:
272PCS/R+272PCS/Y+272PCS/G
Shape:
Round/Square With RYG Balls

Product Details

Bascinfo:

Product Size:
610*130*1795MM+480MM φDiameter
Lenses：
Transparent&Flat/Cobweb&Curved
Wavelength:
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage:
12-24VDC Or 110-220VAC
Light Source:
5MM Diameter LED
Communicate:
Self-Learn/RS485 Real-Time
Power Factor:
≥0.85 @ 25℃
Power Consumption:
＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

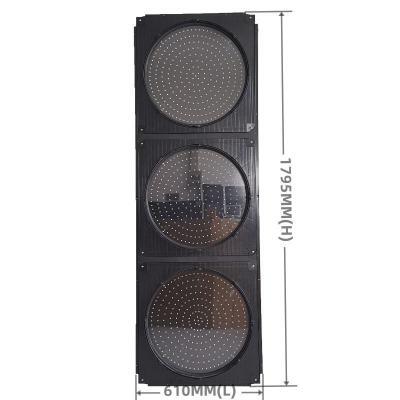

3-Aspect Largest Integrated Traffic Light Body: 6101301795MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC


20Inch(500MM) 3-Aspect RYG Ball Traffic Light Factory, 3 aspect/section as 500MM*3/503
Length: 610MM	Steel bracket: 130MM*100MM
Width/Thickness: 130MM	Top bracket and bottom bracket as one set
Height: 1795MM	Detachable visior: 400MM length

We are 20Inch(500MM) 3-Aspect RYG Ball Traffic Light Factory Since 2006, while this largest diameter traffic light is one kind of Vehicle Traffic Light series, which include ball/arrow vehicle traffic light and its additional traffic light countdown timer.

20Inch(500MM) 3-Aspect RYG Ball Traffic Light has only 1 integrated traffic light body for strongest structure to hold our largest diameter traffic light as a whole set.

20Inch(500MM) 3-Aspect RYG Ball Traffic Light has 3 separate statuses, including red traffic light time for stop, yellow traffic light time for caution, and green traffic light time for go.
