Unlit
Red
Amber
Green

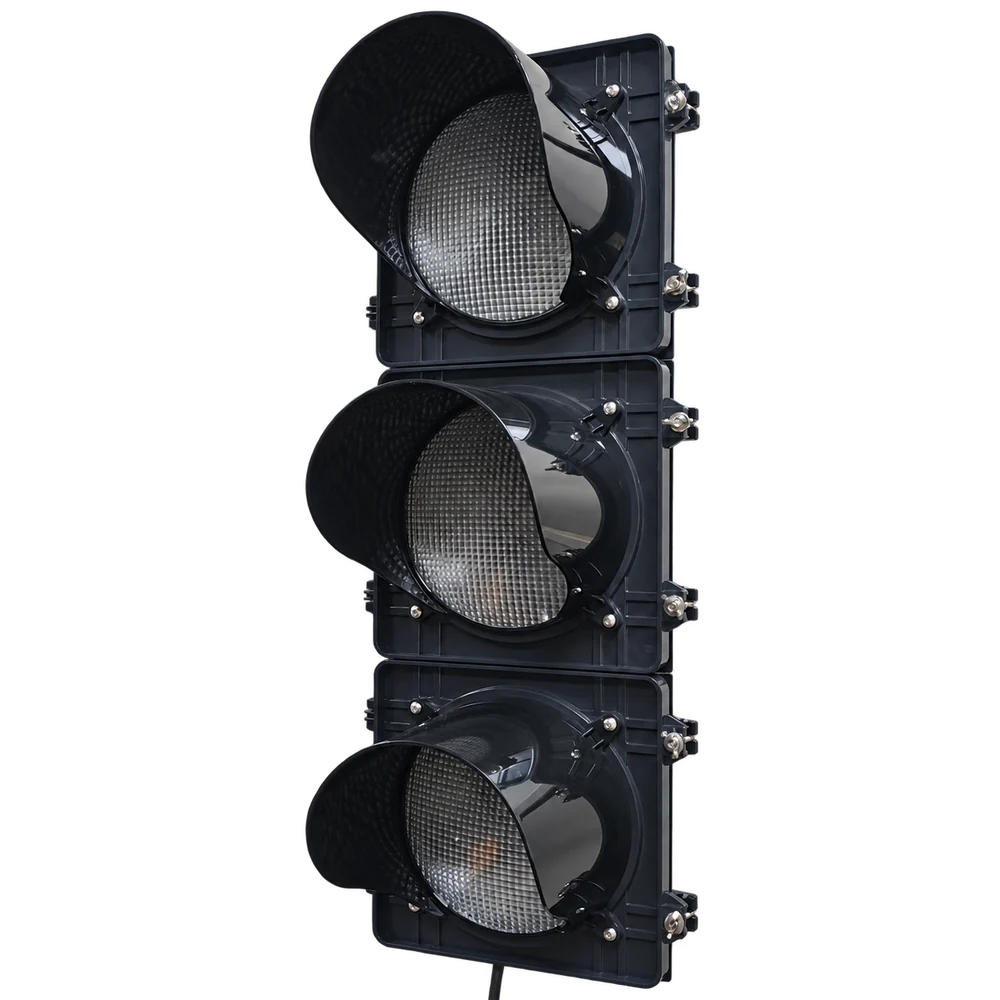

200mm High-Power LED Full Ball Traffic Light — Black Housing
200mm three-aspect high-power LED full ball traffic light with red, amber and green indications, shown in a black housing.
- Nominal signal size:
- 200mm
- Light source:
- High-power LED
- Indication type:
- Full ball / circular
- Signal arrangement:
- Three aspects: red / amber / green
- Housing color:
- Black
Product Details
Basic Information
| Nominal signal face diameter | 200mm |
|---|---|
| Light source | High-power LED |
| Indication type | Full ball / circular |
| Indications | Red / amber / green |
| Number of aspects | 3 |
| Aspect arrangement | Vertical |
| Power consumption per aspect / colour | 7 W |
| Supply voltage options | 190–265 V AC; 12 V DC; 32–42 V AC; 24 V DC |
| Ingress protection | IP65 |
| Operating temperature | −40°C to +60°C |
| Housing material | 100% polycarbonate (PC) |
| Housing colour | Black |
Electrical Versions
Select one supply-voltage version when ordering. These options describe separate electrical configurations, not one universal AC/DC input.
The 7 W value applies to one illuminated aspect (one colour), not the complete 3-aspect signal head. Confirm the required voltage, quantity, controller connections and mounting drawing with your equipment list.
Specify the required supply voltage in your enquiry. Confirm the mounting dimensions and any required compliance documents for the selected configuration.
Send the required quantity, destination country, indication and mounting requirements for configuration review.
Original workshop photographs with AI-assisted background removal. Individually illuminated indications are product displays, not photometric measurements or a prescribed operating sequence.
Product Poster
Colour-display composite for product illustration.
Send your message to us
Catalogue colour-display composites show red, amber and green together for illustration; the individual illuminated photographs show separate indications.
