  • Model Number:
  • 16 Inch LED Traffic Lights NJGQ-JDDJS-400-3YSFS3
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • RYG Balls+RG Timer
  • LED Number:
  • 192*2+140PCS/B+168*2PCS/T
  • Shape:
  • Round+Square By RYG Balls+RG Timer

Product Details

Bascinfo:

  • Product Size:
  • 490*160*1425/1505MM+φ338/335MM Diameter
  • Lenses:
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp

Product Details:

Square Shape Timer: Bigger PCB Space And Larger View Than Round Shape

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

3-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 490*160*1505/1425MM

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

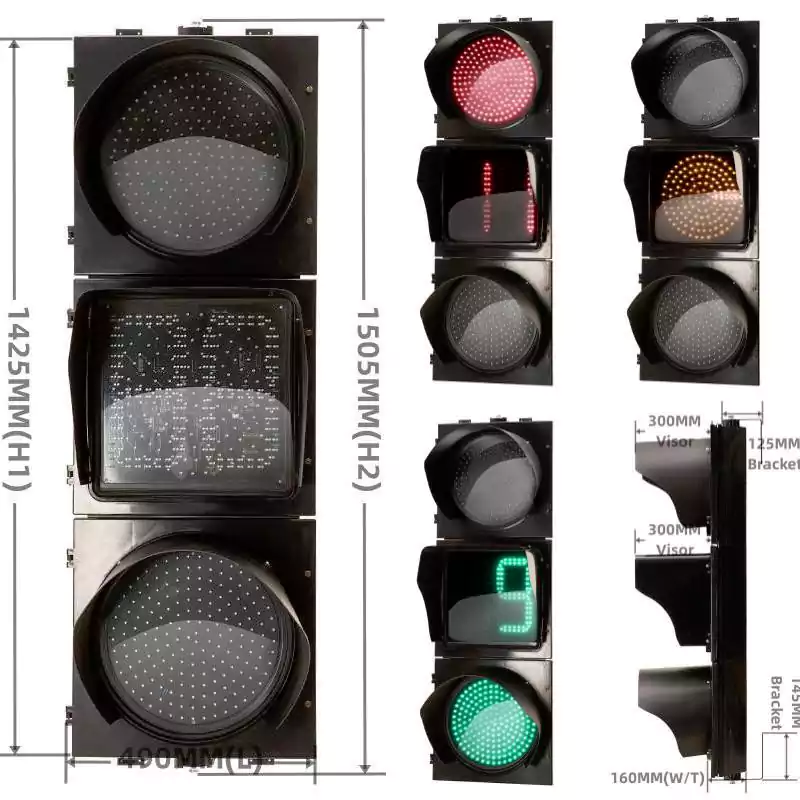

400MM(16 Inch) LED Traffic Light With Countdown Timer 400MM(16 Inch) LED Traffic Light With Countdown Timer

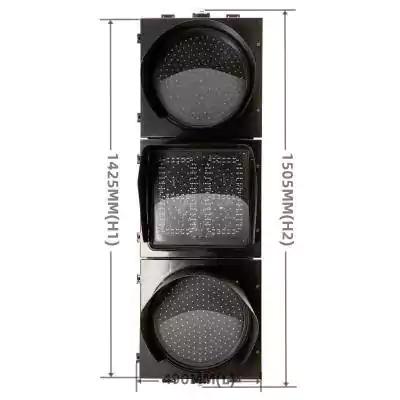

400MM(16 Inch) LED Traffic Lights With Countdown Timer, 3 aspects/sections as 400MM*3/403

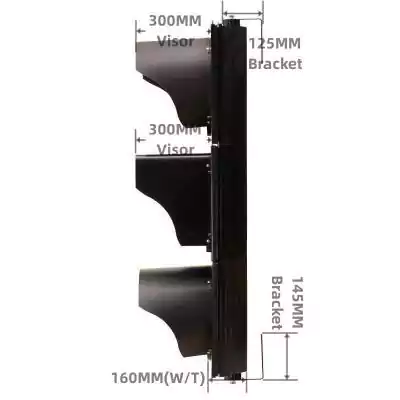

Length: 490MM Steel bracket: 125MM*145MM
Width/Thickness: 160MM Top bracket and bottom bracket as one set
Height: 1425/1505MM(No Bracket) Detachable visior: 300MM length

400MM(16 Inch) LED Traffic Lights With Countdown Timer is one kind of our 4 inch to 20 inch vehicle LED traffic light series, which  often includes ball arrow LED traffic lights and its additional LED traffic lights countdown timer, reminding any driver when to go or stop for any crossing.

400MM(16 Inch) LED Traffic Lights With Countdown Timer has 3 detachable LED traffic lights bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

400MM(16 Inch) LED Traffic Lights With Countdown Timer has 3 statuses, including red LED traffic lights time for stop, yellow LED traffic light time for caution, and green LED traffic light time for go.

400MM(16 Inch) LED Traffic Lights With Countdown Timer has its own LED traffic lights countdown timer, it will will more clearly remind any cyclist to stop and cross at a road by its remaining red and green time.
