  • Model Number:
  • 16 Inch Two-Way Traffic Sign Light NJGQ-FXFX-400-3YS/FS3
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red+Yellow+Green Double-Arrows
  • LED Number:
  • 83PCS/R+83PCS/Y+83PCS/G
  • Shape:
  • Round/Square With Double-Arrows

Product Details

Bascinfo:

  • Product Size:
  • 490*160*1425/1505MM+φ338/335MM Diameter
  • Lenses:
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

3-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 490*160*1505/1425MM

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

400MM(16 Inch) 3-Aspect Two-Way Traffic Sign Light 400MM(16 Inch) 3-Aspect Two-Way Traffic Sign Light

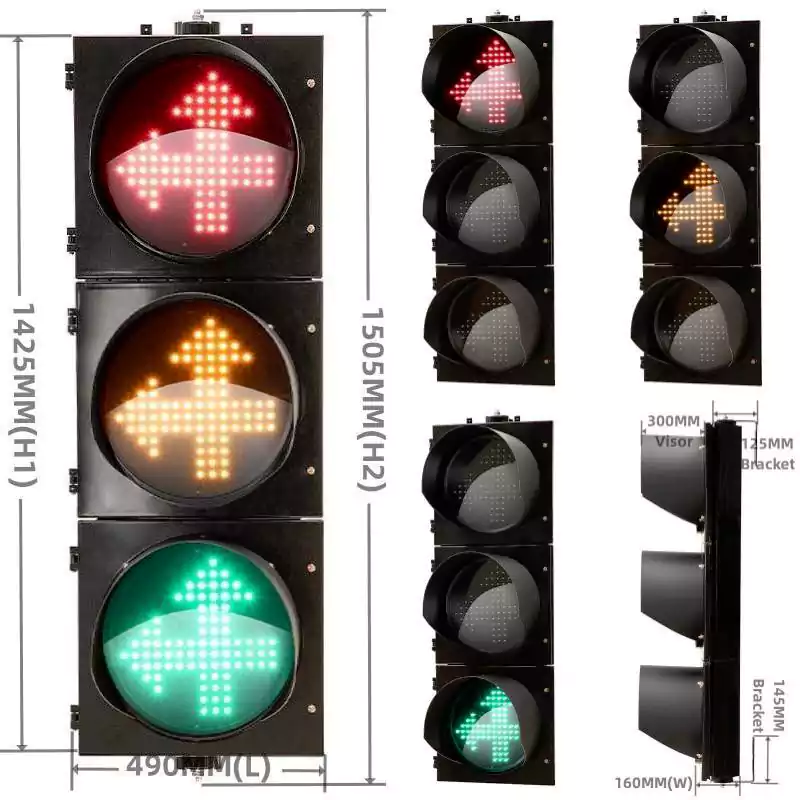

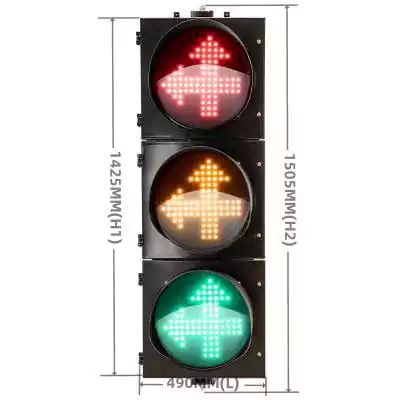

400MM(16Inch) 3-Aspect Two-Way Traffic Sign Light, 3 aspects/sections as 400MM*3/403
Length: 490MM Steel bracket: 125MM*145MM
Width/Thickness: 160MM Top bracket and bottom bracket as one set
Height: 1425/1505MM(No Bracket) Detachable visior: 300MM length

400MM(16Inch) 3-Aspect Two-Way Traffic Sign Light is one kind of our Vehicle Traffic Signal Light series, which  often includes ball or arrow vehicle traffic signal light and its additional traffic signal light countdown timer, reminding any driver when to go or stop for any crossing.

400MM(16Inch) 3-Aspect Two-Way Traffic Sign Light has 3 detachable traffic signal light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic signal light body can be easily added or removed by such bolts and nuts.

400MM(16Inch) 3-Aspect Two-Way Traffic Sign Light has 3 statuses, including red traffic signal light time for stop, yellow traffic signal light time for caution, and green traffic signal light time for go.

400MM(16Inch) 3-Aspect Two-Way Traffic Sign Light can add its countdown timer, then it will will more clearly remind any cyclist to stop and cross at a road by its remaining red, yellow and green time.
