  • Model Number:
  • Traffic Signal Light System NJGQ-JDDJS-400-4YS/FS3
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red+Yellow+Green Balls & Timer
  • LED Number:
  • 192/144PCS*3/B+168*2+84PCS/T
  • Shape:
  • Round/Square With RYG Balls+Timer

Product Details

Bascinfo:

  • Product Size:
  • 490*160*1980/1900MM++φ338/335MM Diameter
  • Lenses:
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Module

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

4-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 490*160*1980/1900MM

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

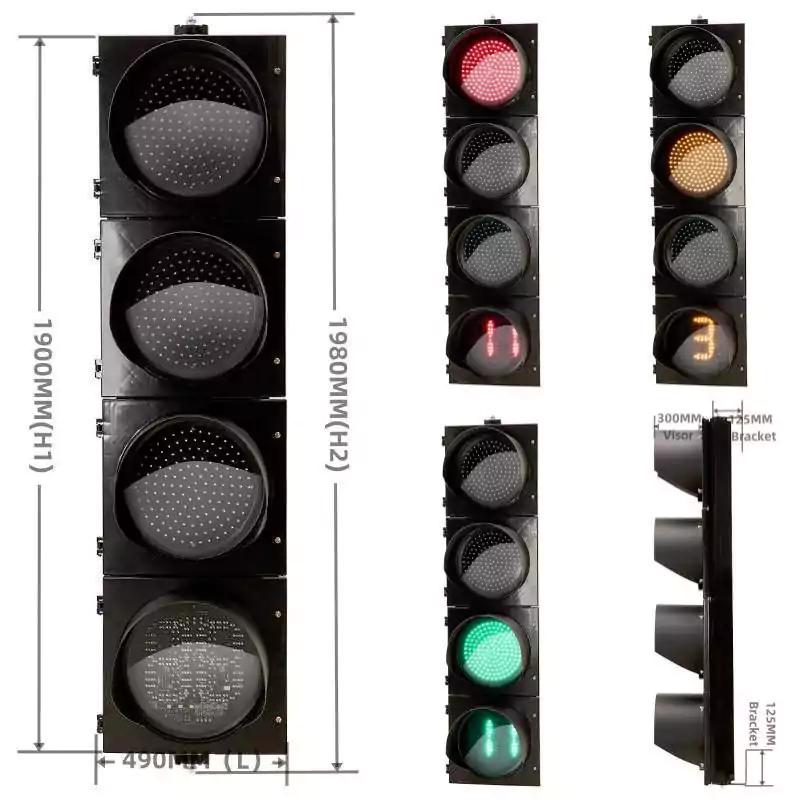

16-Inch(400MM) Ball LED Traffic Signal Light System With Timer 16-Inch(400MM) Ball LED Traffic Signal Light System With Timer
16-Inch(400MM) Ball LED Traffic Signal Light System With Timer, 4 aspects/sections as 400MM*4/304

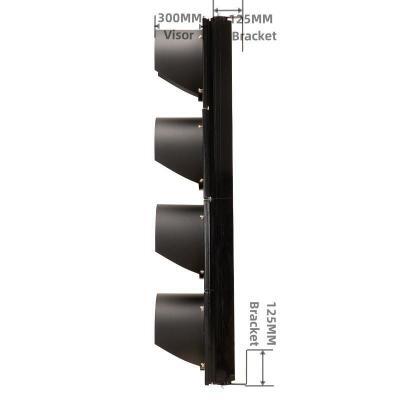

Length: 490MM Steel bracket: 125MM*145MM
Width/Thickness: 160MM Top bracket and bottom bracket as one set
Height: 1980/1900MM(No Bracket) Detachable visior: 300MM length

16-Inch(400MM) Ball LED Traffic Signal Light System With Timer is one kind of our Vehicle Traffic Light series, which  often includes ball arrow vehicle traffic light and its additional traffic light countdown timer, reminding any driver when to go or stop for any crossing.

16-Inch(400MM) Ball LED Traffic Signal Light System With Timer has 4 detachable traffic light bodies, and these 4 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

16-Inch(400MM) Ball LED Traffic Signal Light System With Timer has 3 statuses, including red traffic light time for stop, yellow traffic light time for caution, and green traffic light time for go.

16-Inch(400MM) Ball LED Traffic Signal Light System With Timer has its own countdown timer, it will will more clearly remind any cyclist to stop and cross at a road by its remaining red and green time.
