  • Model Number:
  • Traffic Signal Countdown Timer NJGQ-FXDJS-400-4YS/FS3
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red+Yellow+Green Arrows & Timer
  • LED Number:
  • 108PCS*3/A+168*2+84PCS/T
  • Shape:
  • Round/Square With RYG Arrow+Timer

Product Details

Bascinfo:

  • Product Size:
  • 490*160*1980/1900MM+φ338/335MM Diameter
  • Lenses:
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Module

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

4-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 490*160*1980/1900MM

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

16-Inch(400MM) Arrow Traffic Light With Traffic Signal Countdown Timer 16-Inch(400MM) Arrow Traffic Light With Traffic Signal Countdown Timer

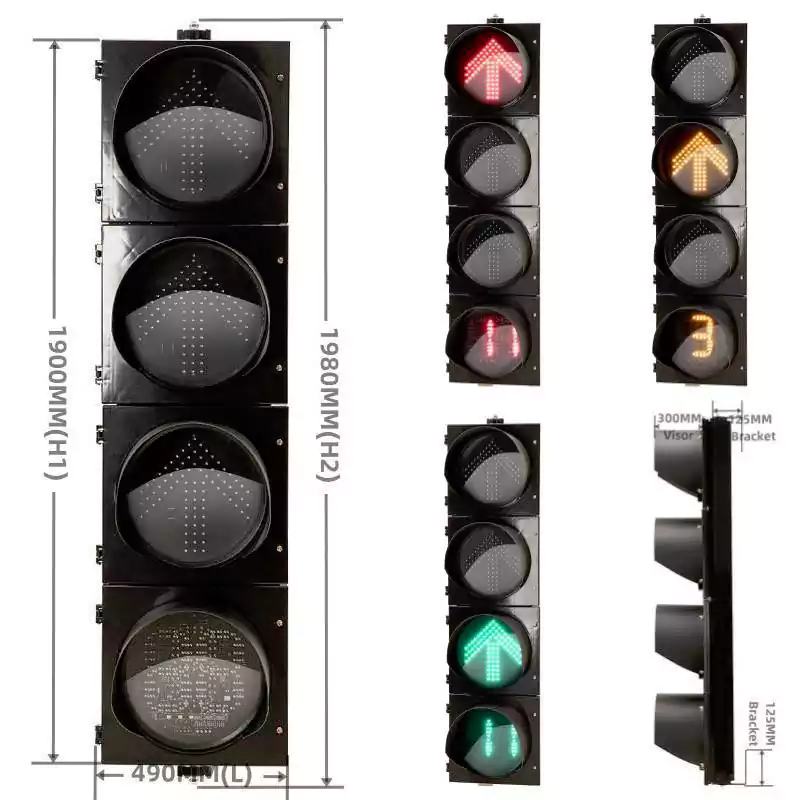

16-Inch(400MM) Arrow LED Traffic Light With Traffic Signal Countdown Timer, 4 aspects/sections as 400MM*4/304

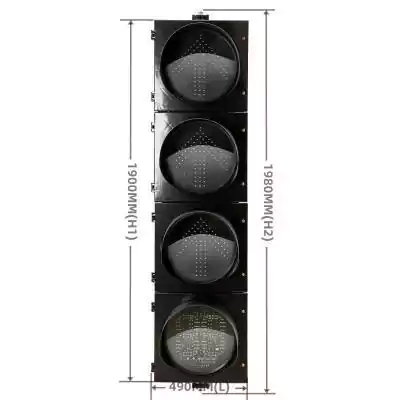

Length: 490MM Steel bracket: 125MM*145MM
Width/Thickness: 160MM Top bracket and bottom bracket as one set

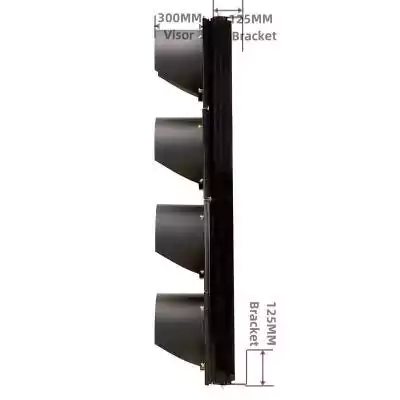

Height: 1980/1900MM(No Bracket) Detachable visior: 300MM length

16-Inch(400MM) Arrow LED Traffic Light With Traffic Signal Countdown Timer is one kind of our Vehicle Traffic Light series, which  often includes ball arrow vehicle traffic light and its additional traffic light countdown timer, reminding any driver when to go or stop for any crossing.

16-Inch(400MM) Arrow LED Traffic Light With Traffic Signal Countdown Timer has 4 detachable traffic light bodies, and these 4 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

16-Inch(400MM) Arrow LED Traffic Light With Traffic Signal Countdown Timer has 3 statuses, including red traffic light time for stop, yellow traffic light time for caution, and green traffic light time for go.

16-Inch(400MM) Arrow LED Traffic Light With Traffic Signal Countdown Timer has its own countdown timer, it will will more clearly remind any cyclist to stop and cross at a road by its remaining red and green time.
