  • Model Number:
  • 16 Inch 3-Aspect Square Traffic Light NJGQ-JD-400-3YS/FS3
  • Housing Body:
  • UV PC Plastic
  • LED Module:
  • UV PC Plastic & Electronics
  • LED Color:
  • Red+Yellow+Green Balls
  • LED Number:
  • 192PCS Or 144PCS/R/Y/G
  • Shape:
  • Round/Square With RYG Balls

Product Details

Bascinfo:

  • Product Size:
  • 490*160*1425/1505MM+φ338/335MM Diameter
  • Lenses:
  • Transparent&Flat/Cobweb&Curved
  • Wavelength:
  • 630±5nm(R), 590±5nm(Y), 505±5nm(G)
  • Input Voltage:
  • 12-24VDC Or 110-220VAC
  • Light Source:
  • 5MM Diameter LED
  • Communicate:
  • Self-Learn/RS485 Real-Time
  • Power Factor:
  • ≥0.85 @ 25℃
  • Power Consumption:
  • <3W Per Module

Product Details:

Square Shape Design: Max Design Space For Larger Look Than Rouand Shape

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

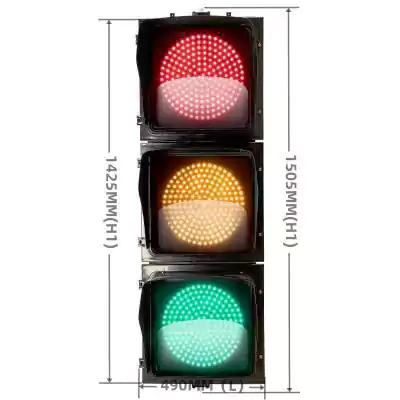

3-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 490*160*1505/1425MM

Customizable Traffic Light Optics:Customize Your Voltage From 12-24VDC And 110-220VAC

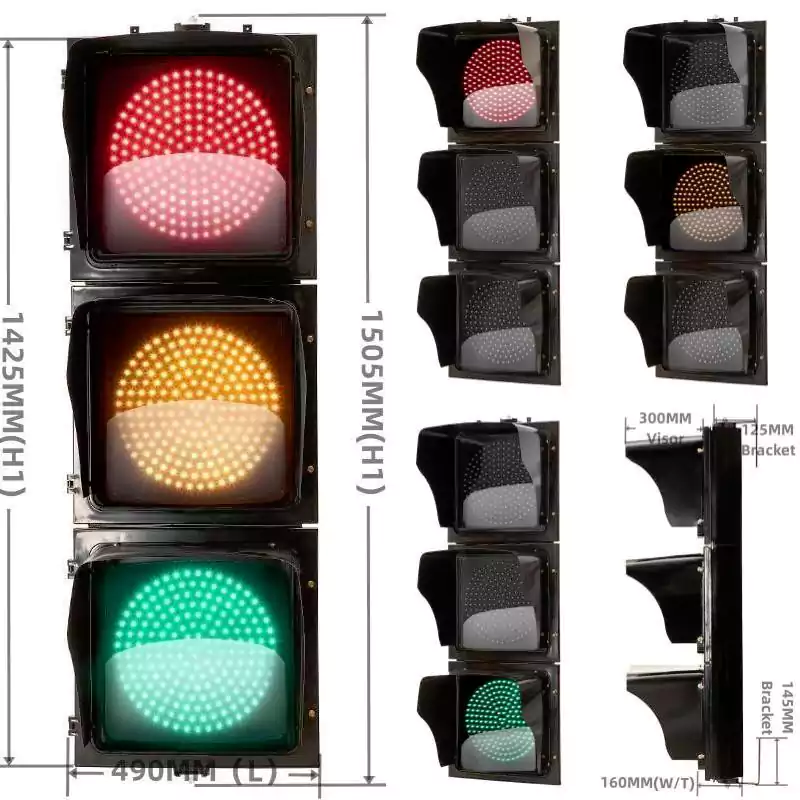

16 Inch(400MM) 3-Aspect Square Traffic Light 16 Inch(400MM) 3-Aspect Square Traffic Light
16 Inch(400MM) 3-Aspect Square Traffic Light, 3 aspects/sections as 400MM*3/403

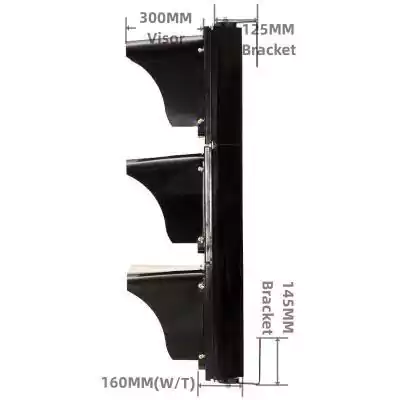

Length: 490MM Steel bracket: 125MM*145MM
Width/Thickness: 160MM Top bracket and bottom bracket as one set
Height: 1425/1505MM(No Bracket) Detachable visior: 300MM length

16 Inch(400MM) 3-Aspect Square Traffic Light is one kind of our Vehicle Traffic Light series, which  often includes ball/arrow vehicle traffic light and its additional traffic light countdown timer, reminding any driver when to go or stop for any crossing.

16 Inch(400MM) 3-Aspect Square Traffic Light has 3 detachable traffic light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

16 Inch(400MM) 3-Aspect Square Traffic Light has 3 statuses, including red traffic light time for stop, yellow traffic light time for caution, and green traffic light time for go.

16 Inch(400MM) 3-Aspect Square Traffic Light has its own square shape, this design has larger space than round shape, so it looks bigger from personal visual effect.
