Product Details
Bascinfo:
- Product Size:
- 400*145*1205/1125MM+φ254/268MM Diameter
- Lenses：
- Transparent&Flat/Cobweb&Curved
- Wavelength:
- 630±5nm(R), 590±5nm(Y), 505±5nm(G)
- Input Voltage:
- 12-24VDC Or 110-220VAC
- Light Source:
- 5MM Diameter LED
- Communicate:
- Self-Learn/RS485 Real-Time
- Power Factor:
- ≥0.85 @ 25℃
- Power Consumption:
- ＜3W Per Module
Product Details:
Square Shape Design: Max Design Space For Larger Look Than Rouand Shape
Transparent Lens Design: High Resolution And High Penetration For High Light Effect
3-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 490*160*1505/1425MM
Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC
 |
 |
|---|---|

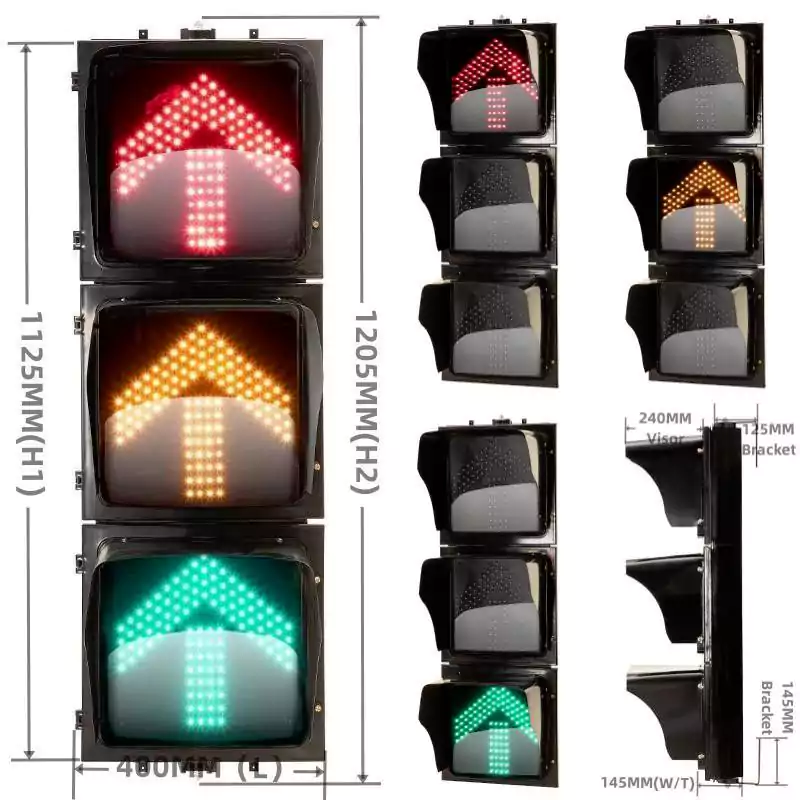

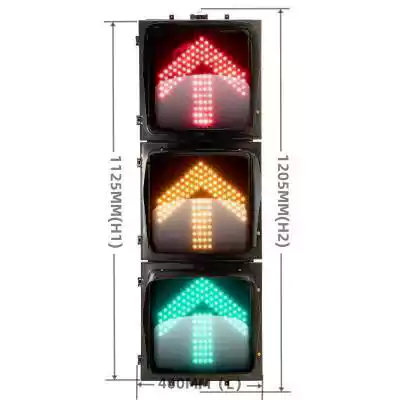

| 12 Inch(300MM) 3-Aspect Arrow Led Traffic Light System, 3 aspects/sections as 300MM*3/303 | |
| Length: 400MM | Steel bracket: 125MM*145MM |
| Width/Thickness: 145MM | Top bracket and bottom bracket as one set |
| Height: 1205/1125MM(No Bracket) | Detachable visior: 240MM length |
12 Inch(300MM) 3-Aspect Arrow Led Traffic Light System is one kind of our Vehicle Traffic Signal Light series, which often includes ball or arrow vehicle traffic signal light and its additional traffic signal light countdown timer, reminding any driver when to go or stop for any crossing.
12 Inch(300MM) 3-Aspect Arrow Led Traffic Light System has 3 detachable traffic signal light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic signal light body can be easily added or removed by such bolts and nuts.
12 Inch(300MM) 3-Aspect Arrow Led Traffic Light System has 3 statuses, including red traffic signal light time for stop, yellow traffic signal light time for caution, and green traffic signal light time for go.
12 Inch(300MM) 3-Aspect Square Traffic Signal Light has its own square shape, this design has larger space than round shape, so it looks bigger from personal visual effect.
