4-Aspect Led Traffic Lights Red Yellow Green Ball And 3-In-1 Arrow

4-Aspect/Section Led Traffic Lights Red Yellow Green Ball And 3-In-1 Arrow Traffic Semaphore is one kind of our Vehicle Traffic Lights Series, which often includes ball/arrow vehicle traffic light and its additional traffic light countdown timer,reminding any driver when to go or stop for any crossing.

Model Number:
4-Aspect Led Traffic Lights Semaphore 8 Inch(200MM)
Housing Body:
UV PC Plastic
LED Module:
UV PC Plastic & Electronics
LED Color:
RYG Balls+RYG Arrow
LED Number:
126PCS*3/B+34*3PCS/A
Shape:
Round With Balls And Arrow

Product Details

Basic Information:

Product Size:
270*110*1200(1100)MM/184+200MM φDiameter
Lenses：
Transparent&Flat/Cobweb&Curved
Wavelength:
630±5nm(R), 590±5nm(Y), 505±5nm(G)
Input Voltage:
12-24VDC Or 110-220VAC
Light Source:
5MM Diameter LED
Communicate:
Self-Learn/RS485 Real-Time
Power Factor:
≥0.85 @ 25℃
Power Consumption:
＜3W Per Lamp

Product Details:

Transparent Lens Design: High Resolution And High Penetration For High Light Effect

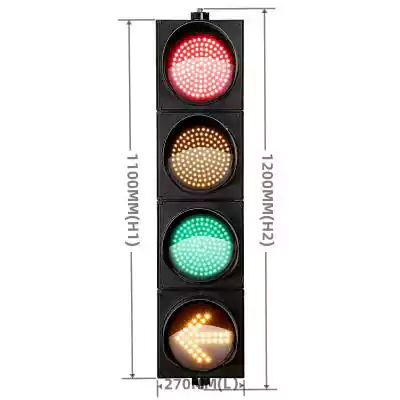

4-Aspect Detachable Traffic Light Body: 270*110*1200(1100)MM

Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC


4-Aspect/Section Led Traffic Lights Red Yellow Green Ball And 3-In-1 Arrow Traffic Semaphore, as 8 Inch(200MM)*4/204
Length: 270MM	Steel bracket: 125MM*145MM
Width/Thickness: 110MM	Top bracket and bottom bracket as one set
Height: 1200MM/1100MM(No Bracket)	Detachable visior: 155MM length

4-Aspect/Section Led Traffic Lights Red Yellow Green Ball And 3-In-1 Arrow Traffic Semaphore has 4 detachable traffic light bodies, and these 4 aspects are connected by its long bolts and nuts as a whole body, while each traffic light body can be easily added or removed by such bolts and nuts.

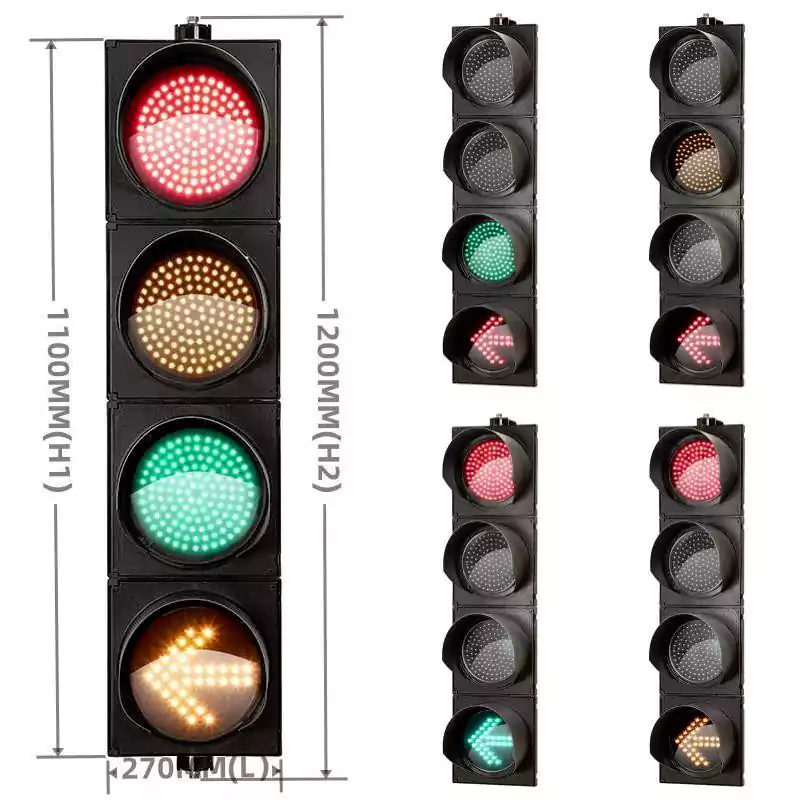

4-Aspect/Section Led Traffic Lights Red Yellow Green Ball And 3-In-1 Arrow Traffic Semaphore has 3 separate statuses, including red traffic light time for stop, yellow traffic light time for caution, and green traffic light time for go.

4-Aspect/Section Led Traffic Lights Red Yellow Green Ball And 3-In-1 Arrow Traffic Semaphore has 2 phases together in one whole body, including green ball time for one phase and green arrow time for another phase.

Choosing this 200mm ball-and-arrow traffic signal

This four-aspect signal combines three 200mm red, yellow and green circular indications with a compact three-color arrow module. The arrangement gives a traffic engineer two kinds of information in one housing: standard through-movement signals and a separate directional indication. Its UV-resistant PC housing, selectable flat or curved lens, and low-power LED modules make it suitable for complete new signal heads or replacement projects where the controller and mounting layout are already defined.

Best-fit applications

Use this configuration at junctions that need a protected turning movement alongside the normal red-yellow-green sequence. It can also simplify a multi-lane installation when a separate arrow head would add unnecessary mounting hardware. The available 12–24V DC and 110–220V AC inputs, together with self-learning or RS485 timer communication options, allow the signal specification to be matched to the project controller rather than adapted on site.

What to confirm before ordering

Required arrow direction and whether the arrow is active in every phase.
Controller output voltage, switching method and any RS485 communication requirement.
Flat transparent or curved cobweb lens, mounting brackets and housing orientation.
Local visibility distance and whether a larger 300mm or 400mm signal is required.

Helpful resources: Compare four-aspect signals Choose the correct signal size Review installation planning Request a project quotation.
