Product Details
Basic Information:
- Product Size:
- 400*145*1205/1125MM+φ254/268MM Diameter
- Lenses：
- Transparent&Flat/Cobweb&Curved
- Wavelength:
- 630±5nm(R), 590±5nm(Y), 505±5nm(G)
- Input Voltage:
- 12-24VDC Or 110-220VAC
- Light Source:
- 5MM Diameter LED
- Communicate:
- Self-Learn/RS485 Real-Time
- Power Factor:
- ≥0.85 @ 25℃
- Power Consumption:
- ＜3W Per Lamp
Product Details:
Transparent Lens Design: High Resolution And High Penetration For High Light Effect

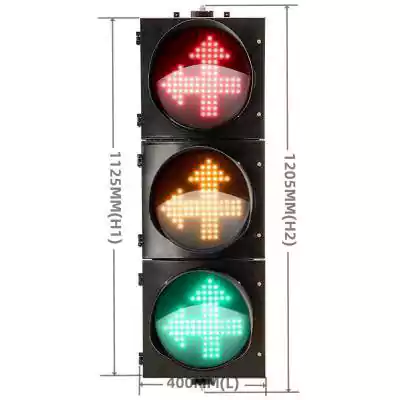

3-Aspect Attachable PC(Polycarbonate) Traffic Light Body: 400*145*1205/1125MM
Customizable Traffic Light Optics：Customize Your Voltage From 12-24VDC And 110-220VAC
 |
 |
|---|---|

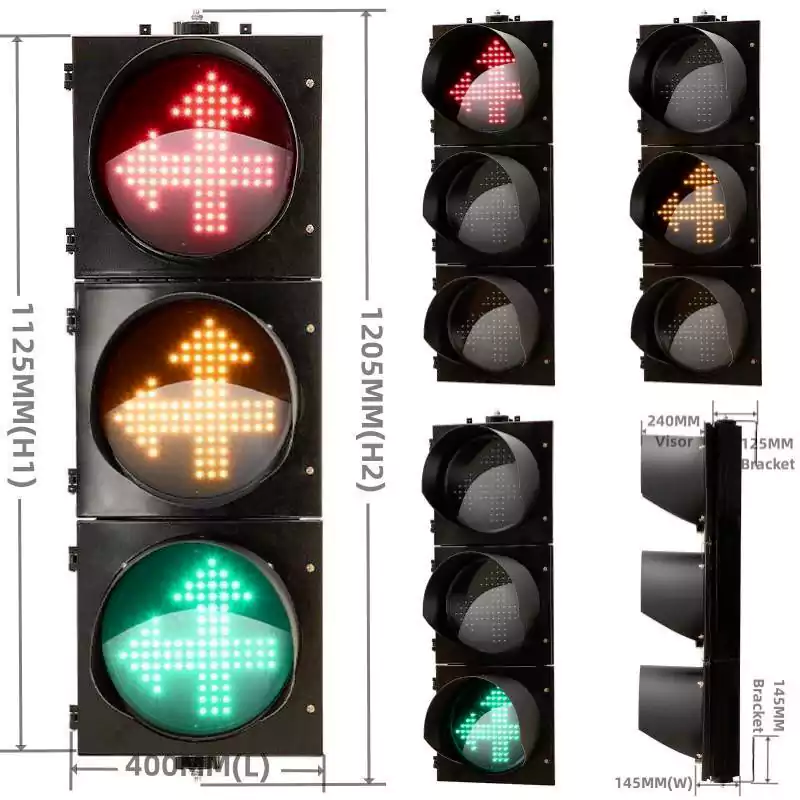

| 3 Aspects/SectionsLed Traffic Light With Two-Way Signal, as 12 Inch(300MM)*3/303 | |
| Length: 400MM | Steel bracket: 125MM*145MM |
| Width/Thickness: 145MM | Top bracket and bottom bracket as one set |
| Height: 1205/1125MM(No Bracket) | Detachable visior: 200MM length |
3-Aspect Led Traffic Light With Two-Way Signal is one kind of our Vehicle Traffic Signal Light series, which often includes ball or arrow vehicle traffic signal light and its additional traffic signal light countdown timer, reminding any driver when to go or stop for any crossing.
3-Aspect Led Traffic Light With Two-Way Signal has 3 detachable traffic signal light bodies, and these 3 aspects are connected by its long bolts and nuts as a whole body, while each traffic signal light body can be easily added or removed by such bolts and nuts.
3-Aspect Led Traffic Light With Two-Way Signal has 3 statuses, including red traffic signal light time for stop, yellow traffic signal light time for caution, and green traffic signal light time for go.
3-Aspect Led Traffic Light With Two-Way Signal has 2-way design for single color, it means 2 direction traffic flows can be done at the same time.If it is green time, both straight arrow and left-turn arrow are green time together.
Selecting a 300mm two-way arrow traffic light
This three-aspect signal uses 300mm red, yellow and green two-way arrow modules to communicate controlled movement in both indicated directions. The medium-size head provides a balance between the compact 200mm format and the larger 400mm version. Its UV-resistant polycarbonate housing can be supplied with round or square arrow presentation and transparent flat or cobweb curved lenses. Because two directional instructions are combined in every indication, the final arrow geometry should be confirmed from the driver viewpoint rather than from the rear of the signal.
Where the 300mm format is appropriate
This configuration can be considered for urban junctions, facility entrances, bridge approaches or shared lanes where the project drawing calls for red-yellow-green two-way arrows. It supports 12–24V DC and 110–220V AC versions, allowing the signal to match new or existing cabinets. Self-learning or RS485 real-time communication can be selected according to the controller design. Before installation, check that the controller phase plan, cable cores and mounting arrangement all support the two-way indication without creating an ambiguous or conflicting message.
What to confirm before ordering
- Required arrow orientation and whether a round or square symbol is preferred.
- Supply voltage, controller output logic and communication interface.
- Flat or curved lens selection and the intended viewing distance.
- Pole bracket dimensions, cable entry and phase sequence documentation.
Helpful resources: Compare three-aspect traffic lights Review size selection Plan installation details Request a project quotation.
